BJF100





Manual

The BJF100 is a hand-wired 100W EL34 powered amp with two completely separated channels. The design is an unique collaboration between the famous pedal and amp designer Björn Juhl and John Olsson at Olsson Amps. This amp is really inspiering to play and has a lot of tonal possibilities.

Adjust the gain to the amount of distortion you like and then just turn the volume to the desired level and you will find that the sound remains the same from bedroom- up to arena- volumes.

BJF100 is very dynamic and cleans up extremely well with the guitars volume control even at high gain settings.

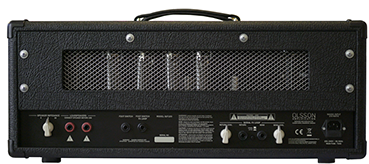

The amp is designed to take pedals and loves them all. At the rear you will find a very transparent serial FX loop with both send and return level adjustments to make it compatible with all types of effects and needs.











Model:    BJF100

Mains:    Available in 100, 120, 220 or 230/240V versions, 50/60Hz

Mains voltage tolerance:  +/-10%

Max power consumption:  375W

Ambient operating temperature: 0°-35°C

Max output power:   100W in 4, 8 or 16Ω

Input impedance:   1MΩ

FX loop:    Serial with send and return-level adjustments.

Power tubes:   4 - EL34

Power amp:   Fixed biased. Needs BIAS adjustment when changing power tubes.

Pre amplifier tubes:  4 - 12AX7

Controls: CH1: Gain, Volume, Bass, Mid, Treble, Presence.

                CH2: Gain, Volume, Bass, Mid, Treble, Presence, Clean/Chrunch switch

Dimensions:   640 x 280 x 210 cm,

Weight:    22kg/lbs.



SPECIFICATIONS
